Steelquip Laser 6 KW  -  12KW

Description

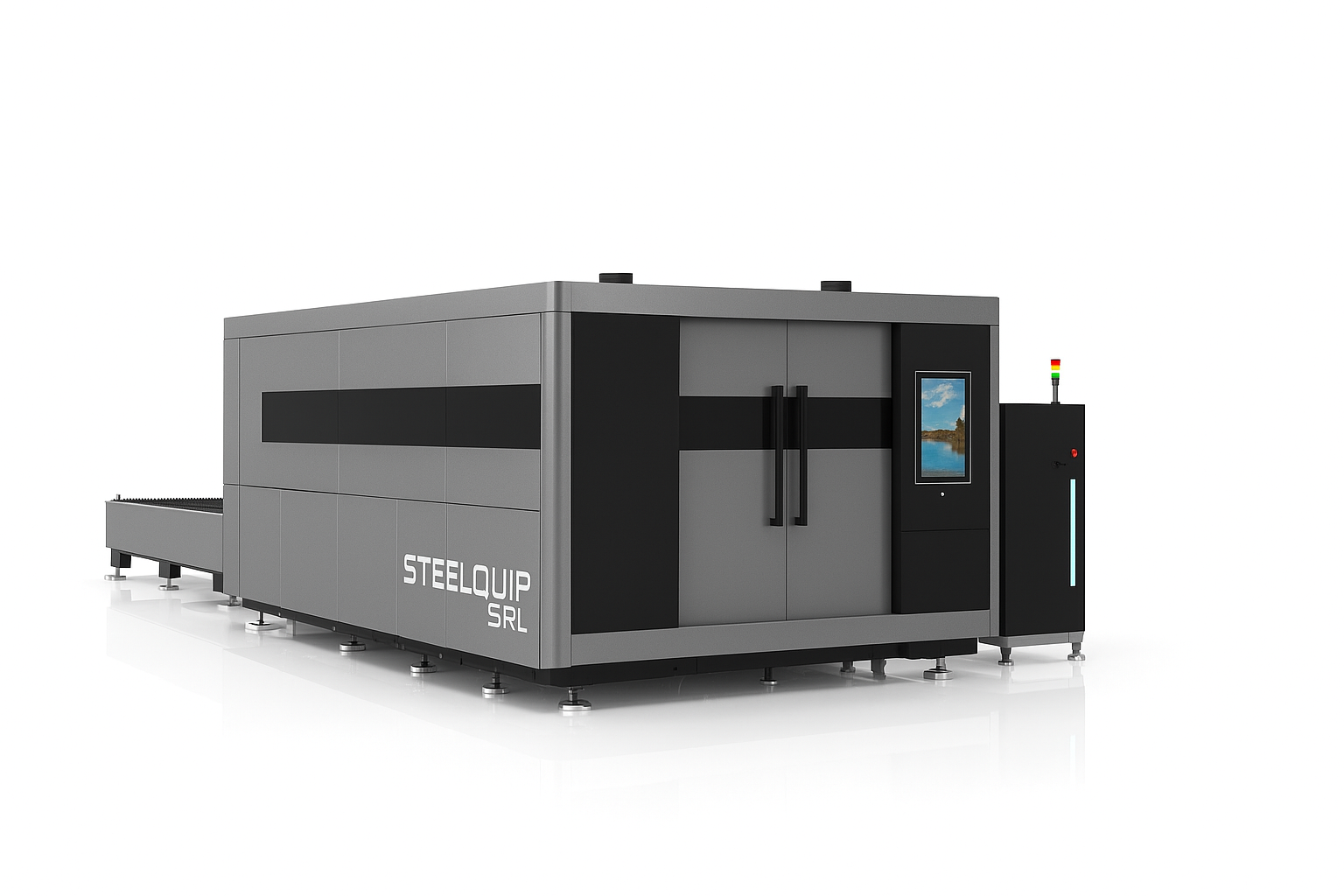

Fiber Laser Cutting Table – Precision, Performance, and Global Quality Standards

This fiber laser cutting table, designed for a maximum working area of 4000 mm x 2000 mm and equipped with a dual shuttle table system, is manufactured in China exclusively according to the specifications of Steelquip S.R.L.

Only high-quality, globally recognized brand components are used in its construction, ensuring reliability and easy replacement anywhere in the world. Renowned names such as Hyvin, Bosch-Rexroth, Festo, Siemens, and Fuji stand for durability, precision, and consistent performance.

The laser cutting system with shuttle table is available in 3 kW, 6 kW, and 12 kW power options, and fully complies with all European and international safety standards.

Comprehensive certifications – including CE conformity, DIN EN ISO 9001, and U.S. market approval – guarantee that every system meets the highest standards of quality, safety, and operational excellence.

Technical data:

Model                                                   BFC Series

Laser TYP                                             CW Fiber Laser

Laser Wavelength                              1060nm

Laser Maximum Power                    6000W/12000W

Working size                                      4000 x 2000mm

X, Y, Z Axis Orientation Precision <+- 0.03mm/m

Min line width                                    <-0.15mm

Max empty running speed               100m/min

Driving way                                          Imported servo motor

Transmission way                              x import gear rack / Y import gear rack

                                                                double driver

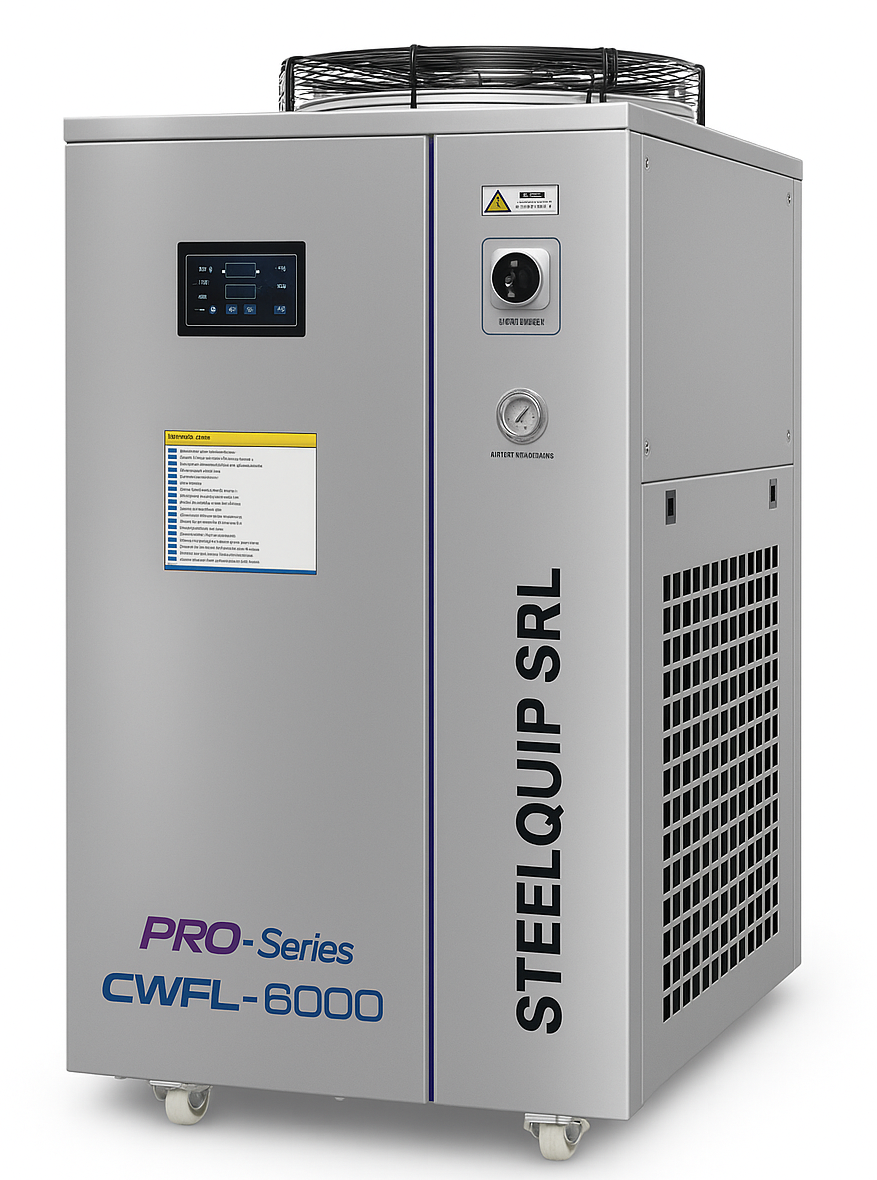

Cooling System                                   Water cooling

Continuous working time                 24 Hours

Environment                                        0-35 Grad

Power requirements                           380V / 3 Phases / 50Hz

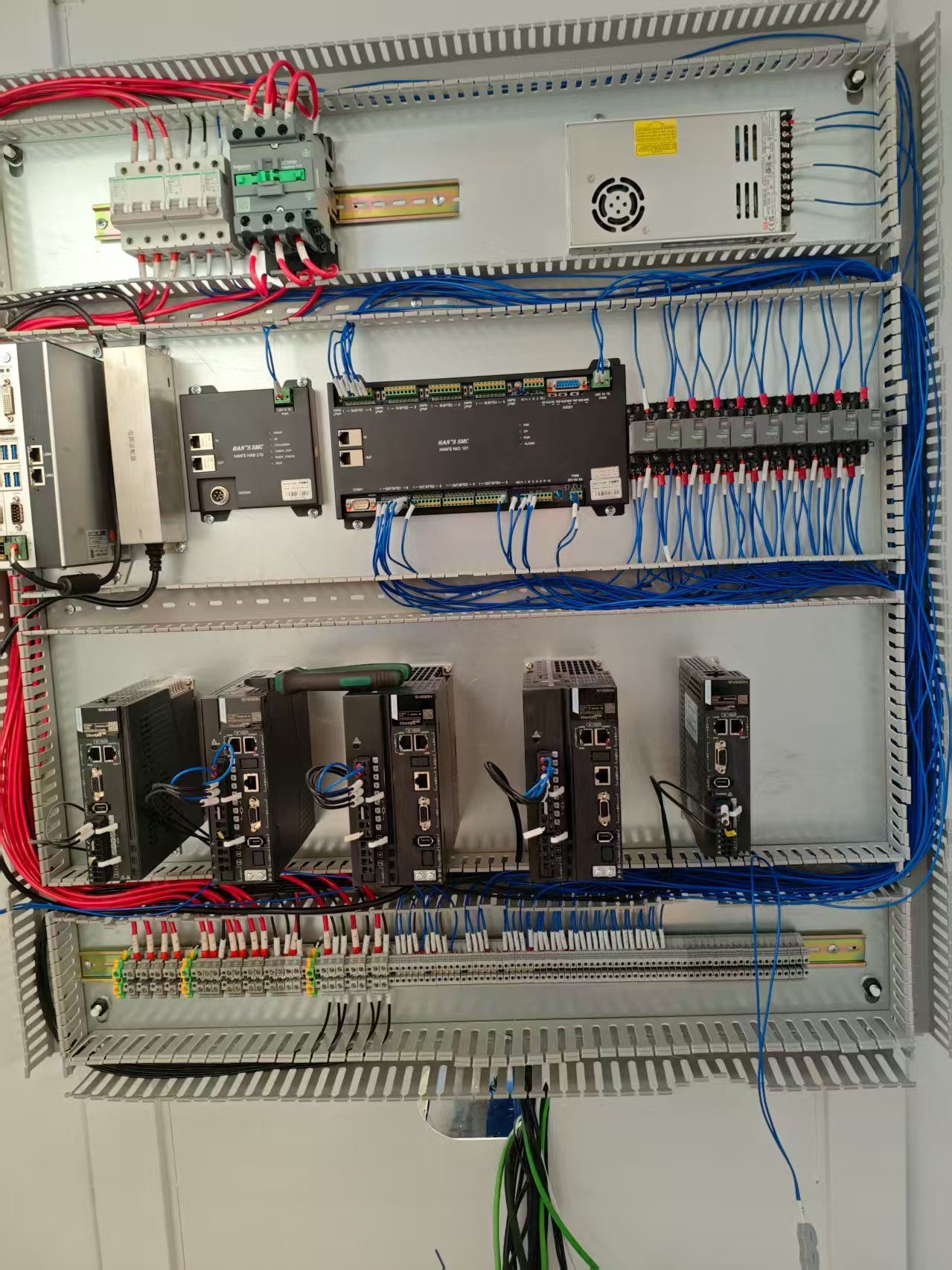

Main cabinet
